New form that is not likely to appear in explosion-proof areas

Slider image

TT-bX type

Features

  • Intrinsic safety explosion proof structure that can be used for Type one and Type two of Hazardous location classification

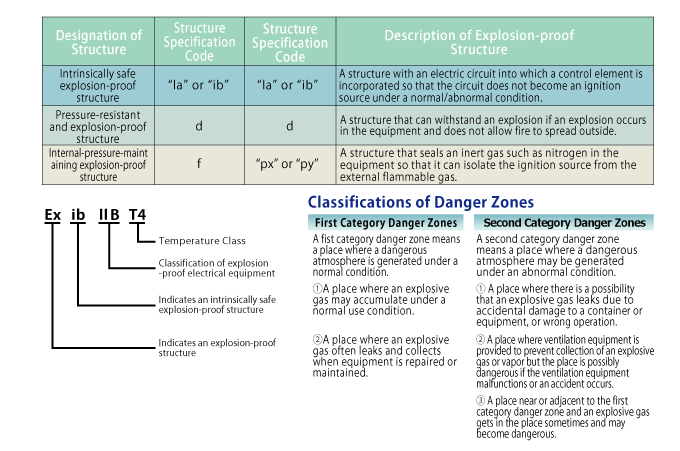

  • Explosion-proof grade Ex ib IIB T4
  • Model examination No. Model examination No. TC20564

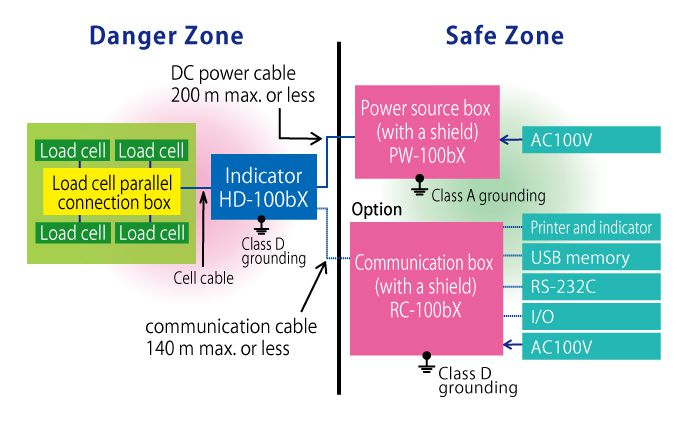

System Configuration

Specification

ModelCertified Intrinsically Safe Explosion-proof ModelCapacity of ScaleScale IntervalPlatform DimensionMaterial
TT-300-bXTT-EX-220-40300kg100g1000×1000mmSteel
TT-600-bXTT-EX-550-40600kg200g1200×1200mm
TT-1-bXTT-EX-550-401000kg500g1200×1200mm
TT-1.5-bXTT-EX-1100-401500kg1500×1500mm
TT-2-bXTT-EX-1100-402000kg1kg1500×1500mm
TT-3-bXTT-EX-1760-403000kg1800×1800mm
