Movable Scale of TANAKA SCALE WORKS CO., LTD. includes portable type and embedded type! (Axial load measurement weighing scale)
Weighing can be conducted when the truck travels over the weighing scale.
Features
- Low-cost type weighing scale of small foundation
- Easy to judge overloading when the vehicle is traveling over the weighing scale Indicator for an easy system-up
Specification
【For purposes other than transaction certification】
Embedded Type | |
Model | UTS |
Capacity of Scale | 20t |
Scale Interval | 10kg |
Platform Dimension | 750×3000mm |
Static accuracy | ± 0.1%/F.S (static accuracy during weight inspection) |
Guide value of dynamic accuracy | ± 2%/F.S (per axis) |
Passing speed | 3 km/h or less/stationary weighing also possible |
Maximum number of measurement axes | 8 axes |

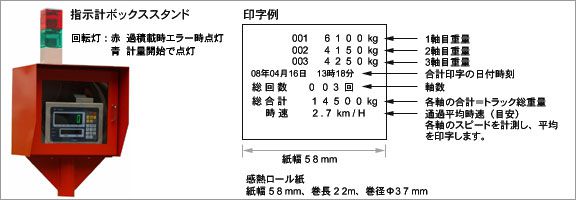

Display | 7 segments, character height 35 mm, green fluorescent display tube |
Printer | Thermosensitive roll paper type |
Data output | RS-232C or RS-422/485 |
Power supply | AC100V±10% |
Operating temperature range | Body: -5℃ to 35℃ Indicator: 0℃ to 35℃ |
